Choosing the right number of miniature circuit breakers (MCBs) for a distribution board is essential for safe and efficient electrical use in any home. The number of MCBs required typically depends on the overall electrical load, the number of circuits in use, and safety standards. A good rule of thumb is to allocate at least one MCB for every major circuit, plus a few extras for future expansion.
Understanding the distribution board’s role is crucial. It acts as the central hub for splitting the incoming electrical supply into separate circuits, each protected by its own MCB. This setup not only prevents overloads but also enhances safety by isolating issues to specific circuits.
Readers will discover that calculating the number of MCBs needed involves considering various household appliances, lighting, and future load requirements. With the right knowledge, anyone can determine how many MCBs are necessary to ensure their electrical system operates smoothly and safely.
The Role of MCBs and Distribution Boards in Electrical Safety
Miniature Circuit Breakers (MCBs) and distribution boards play essential roles in maintaining electrical safety in homes and buildings. They protect circuits from overloads and short circuits and ensure that electrical systems operate reliably. Here’s a closer look at their functions and importance.
What Is a Miniature Circuit Breaker?
A Miniature Circuit Breaker (MCB) is a device designed to protect electrical circuits from overload and fault currents. It automatically interrupts the circuit if it detects excessive current, preventing fires and equipment damage. MCBs are available in different types, such as types B, C, and D, which are based on their trip characteristics.
- Type B: Trips at 3-5 times the rated current, ideal for residential applications with light loads.
- Type C: Trips at 5-10 times the rated current, suitable for circuits with moderate inductive loads.
- Type D: Trips at 10-20 times the rated current, best for heavy machinery with high start-up currents.
MCBs are essential in both branch circuits and consumer units, ensuring a first line of defense against electrical faults.
Principles of Circuit Protection
The primary function of circuit protection devices like MCBs is to ensure electrical safety by interrupting the flow of current during a fault. When an overload occurs, the MCB detects the rising current and opens the circuit. This process minimizes the risk of overheating and potential fires.
In a distribution board, the MCBs protect individual circuits while the main panel handles overall electricity supply. This layered approach allows for quick isolation of faulty circuits without affecting the entire system. Regular inspections of MCBs are necessary to ensure they operate correctly and remain compliant with safety standards.
Types of Circuit Breakers Used in Distribution Boards
Distribution boards typically contain various types of circuit breakers, including MCBs and Moulded Case Circuit Breakers (MCCBs).
- MCBs: Favorable for residential and light commercial settings, these break when overloads occur within a specified range.
- MCCBs: These are larger and can handle higher currents, making them suitable for industrial applications.
Both types serve the same protective purpose but are chosen based on the specific needs of the electrical installation. The correct choice of circuit breakers helps maintain electrical safety and efficiency, ensuring that each circuit can handle its expected load without risk of failure. Proper selection and installation are vital for effective protection.
Key Factors Influencing the Number of MCBs Required
Determining the right number of Miniature Circuit Breakers (MCBs) in a distribution board involves careful consideration of several factors. Understanding the total electrical load, branch circuits, and applicable standards is essential. Each of these components plays a critical role in ensuring a safe and efficient electrical system.
Assessing the Total Electrical Load
The total electrical load is a primary factor when sizing MCBs. It reflects how much current will be drawn from the main panel and distributed throughout the system. Calculating this load involves adding up the wattages of all devices that will be used simultaneously.
For example, a single-phase system typically handles less load compared to a three-phase system. Current load can be calculated using the formula:
[ I (Amps) = \frac{P (Watts)}{V (Volts)} ]
Where higher amperage values might necessitate more MCBs. Typical practice also involves accounting for the power factor and demand factor.
- Power Factor: Refers to how effectively current is converted into useful work.
- Demand Factor: Is the ratio of the maximum demand to the total connected load, allowing for some variability in power usage.
This comprehensive assessment ensures that the distribution board is neither overloaded nor underutilized.
Understanding Branch Circuits and Load Segregation
Branch circuits are pathways that distribute electricity from the main panel to specific electrical devices. Properly analyzing and segregating loads across multiple branch circuits ensures that no single circuit becomes overburdened.
For instance, kitchen appliances might require separate circuits compared to lighting. Standard practice suggests that high-load devices, like air conditioners or electric ranges, should each have their own MCB to prevent circuit overload. This separation helps to balance the overall current throughout the distribution board.
When planning circuits, it’s crucial to consider:
- Single-Phase Loads: Generally suited for residential applications.
- Three-Phase Loads: Often utilized in commercial or industrial setups for higher efficiency.
Designing with load segregation not only enhances safety but also improves the reliability of the electrical system.
Planning for Continuous and Non-Continuous Loads
Another essential consideration in MCB sizing is the distinction between continuous and non-continuous loads. Continuous loads operate for three hours or more, while non-continuous loads do not.
For continuous loads, MCBs should be rated at:
[ 125% \text{ of the continuous load current} ]
This ensures that the circuit breaker can handle extended use without tripping. Non-continuous loads can typically be rated at 100%.
An example includes planning:
- Continuous Loads: Air conditioners, electric water heaters.
- Non-Continuous Loads: Refrigerators, lighting.
By having a mix of both types of loads accounted for, the distribution board can function optimally without unnecessary interruptions.
Codes and Standards That Affect MCB Quantity
Local regulations like the National Electrical Code (NEC) and International Electrotechnical Commission (IEC) standards provide guidelines on how many MCBs should be in use. These codes stipulate factors such as load capacities and safety margins.
For example, NEC guidelines recommend specific ampacity ratings based on the types and sizes of the circuits. Familiarity with these codes is crucial for compliance and safety.
In many cases, practical considerations such as future load expansion should also be integrated. This may include leaving space for additional circuits in the distribution box. Adhering to standards guarantees that installations remain safe and efficient while accommodating potential future needs.
Calculating and Selecting the Right MCBs for Your Application
Choosing the appropriate MCBs for a distribution board is crucial for ensuring safety and efficiency. This process involves determining the right ratings and sizes, accounting for specific electrical conditions, and selecting MCBs with suitable breaking capacities.
Determining MCB Ratings and Sizing
When calculating MCB ratings, start by determining the total current load of all devices connected to the circuit. This includes all appliances and equipment in use. The formula for finding the current in amps is:
Total Amp Load = (Total Watts / Voltage)
For a typical household circuit with 120V, if the total power is 2400W, the calculation would be:
Total Amp Load = 2400W / 120V = 20A
After calculating the total load, MCB sizing follows. For continuous loads, which operate for three hours or more, increase the load by 125%. For example, if the total load is 20A:
Required MCB Size = 20A × 1.25 = 25A
Choose a breaker with an appropriate rating that exceeds this value.
Accounting for Inrush and Fault Currents
Inrush current is the surge of current that occurs when electrical devices start up. This can be several times higher than the normal operating current. For instance, motors may cause inrush currents that are 6 to 8 times their rated current. Selecting an MCB without considering this can lead to nuisance tripping.
To handle inrush currents, MCBs should be chosen based on their tripping characteristics. A Type C or D MCB can accommodate higher inrush currents, as they trip at higher multiples of the full load amps. It’s also essential to select MCBs that can handle fault currents, which are short-circuits that exceed normal levels.
Understanding fault current ratings is vital. A breaker should have a breaking capacity that can safely interrupt the maximum expected fault current without failure. This information is typically provided in the MCB specifications.
Choosing MCBs Based on Breaking Capacity
Breaking capacity indicates the maximum fault current that an MCB can safely interrupt. Selecting MCBs with appropriate breaking capacities prevents catastrophic failure during a fault condition. The breaking capacity is usually measured in kA (kiloamperes).
For residential applications, a breaking capacity of 6 kA is common, while commercial and industrial setups may require 10 kA or more.
When calculating breaking capacity needs, consider:
- The maximum fault current at the location: This can be calculated based on the supply source, and is often provided in electrical reports.
- Distance from the transformer: The further the distribution board is from the supply, the lower the fault current.
Choose MCBs that meet these capacity requirements to enhance safety in power distribution systems.

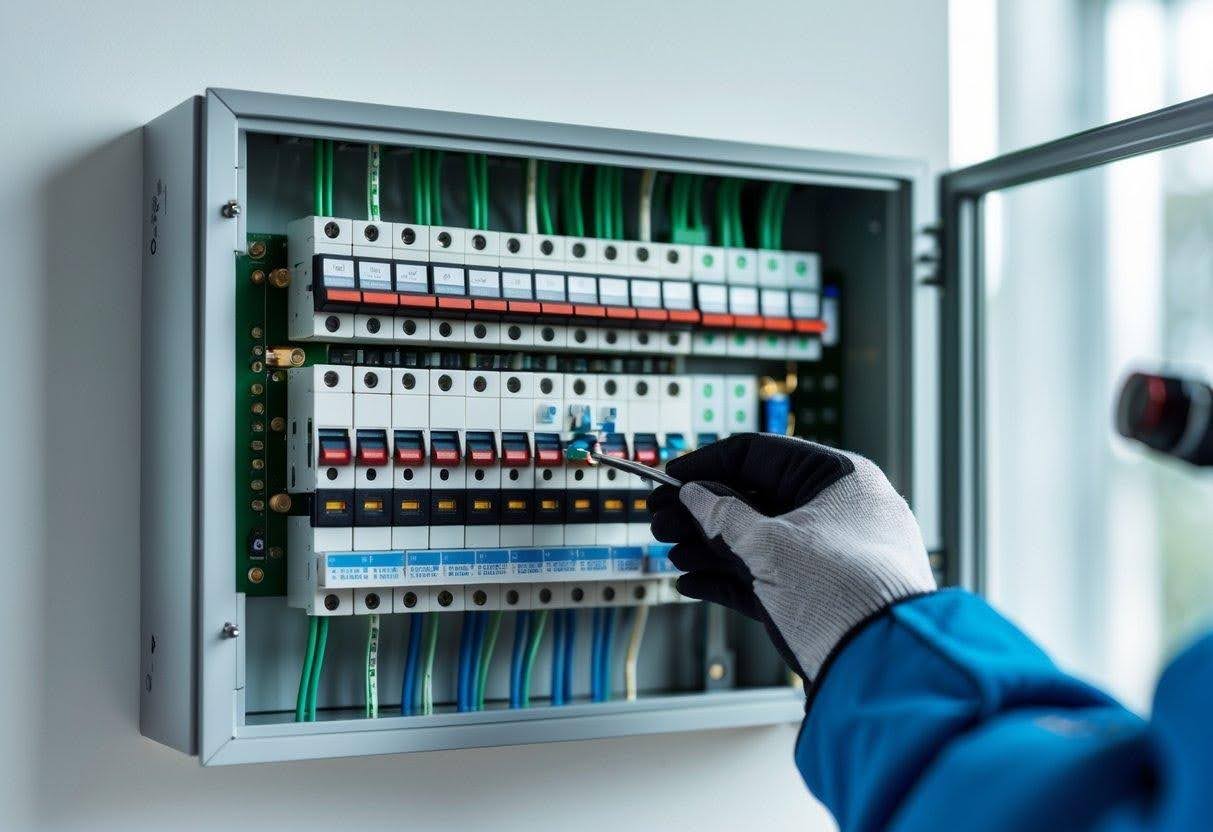

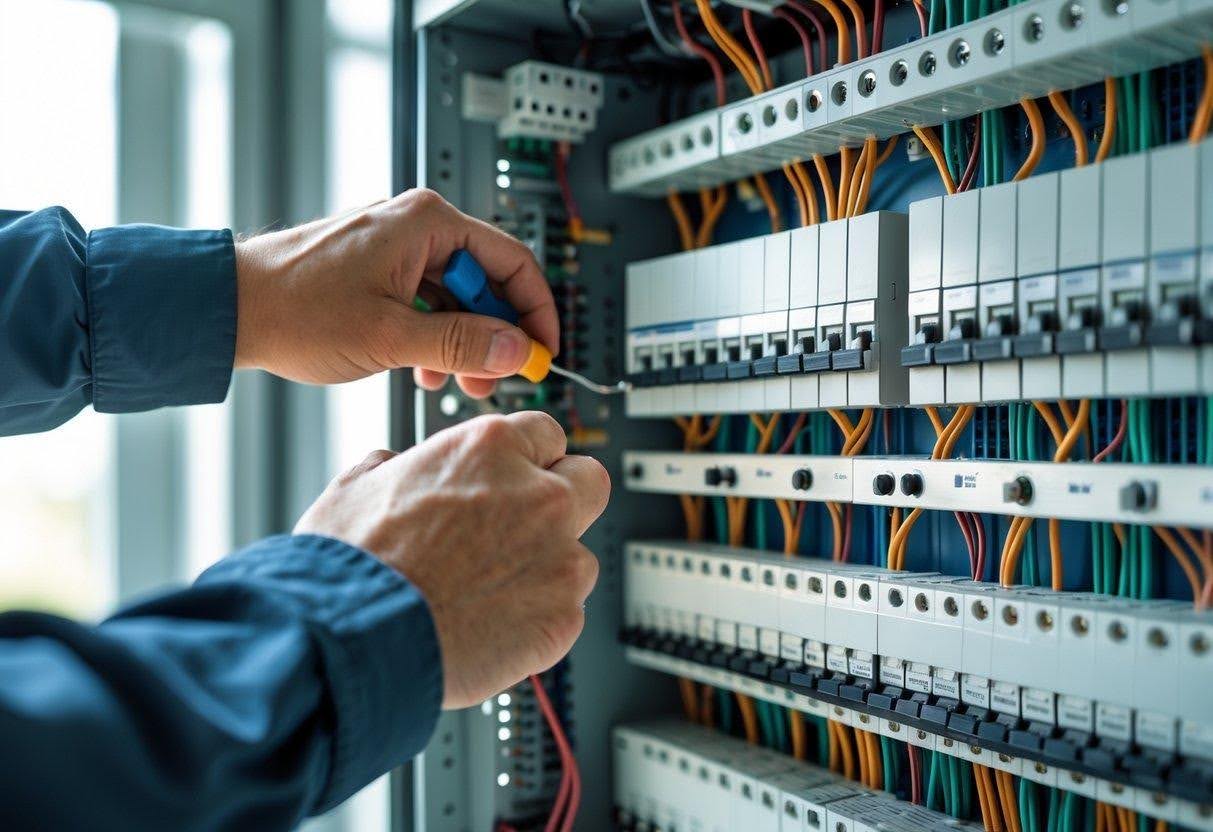

Wiring Layout and Practical Configuration Best Practices
Proper wiring layout and configurations in a distribution board are essential for ensuring safety and functionality. An effective design will consider electrical safety standards, cost-effectiveness, and the flexibility to accommodate future needs.
Wiring Guidelines for Safe Installations
When wiring a distribution board, following essential guidelines promotes safety and efficiency. Start by ensuring that the electrical supply is disconnected before any work begins. Use wires rated appropriately for the expected load, as undersized wires can overheat and lead to fires.
Key considerations include:
- Cable Sizing: Refer to NEC tables for accurate wire ampacity. Use conductors with suitable ratings to prevent overheating.
- Color Coding: Follow local standards for wire color coding to avoid confusion during maintenance.
- Grommets and Bushings: Protect wires from sharp edges within the distribution box by using grommets. This prevents wear and potential short circuits.
Having clear labeling for each circuit will assist in future troubleshooting and maintenance.
Balancing Cost-Effectiveness and Flexibility
Selecting the right components for the distribution board can balance cost and flexibility. Choosing high-quality yet affordable components can reduce long-term maintenance costs. For instance, he or she might select Miniature Circuit Breakers (MCBs) over fuses for easier replacements.
Consider these factors:
- Initial Costs vs. Long-Term Savings: Although MCBs may have a higher upfront cost than traditional fuses, they provide greater reliability and reduce replacement frequency.
- Modular Design: Opt for a distribution box that allows easy addition of new circuits. This makes modifications simple without needing a complete overhaul.
- Space Allocation: Design the consumer unit to accommodate future expansions without overcrowding, promoting safety and compliance with electrical codes.
Allowing Space for Future Expansion
Planning for growth is crucial in any wiring project. A well-thought-out layout will make future upgrades simpler and more cost-effective. Ensuring ample space for additional MCBs or circuits can prevent inconvenience down the line.
Strategies include:
- Leave Room in the Distribution Board: Aim to leave at least 20% of the panel capacity available for future circuits.
- Consider Current and Future Load: Assess current usage and project future electrical needs to avoid overcrowding. This may involve evaluating additional appliances or systems that may be installed later.
- Use Standard-Size Breakers: Whichever standard breaker size is chosen, they should align with typical future needs, allowing for easier upgrades.
By focusing on these practices, they create a safe, cost-effective, and scalable electrical system.
Optimizing Protection and Compliance: Tips for Residential and Commercial Panels
When designing electrical panels, both residential and commercial setups require specific attention to detail. Proper planning ensures effective power distribution, safety, and code compliance. The following sections highlight essential factors to consider in optimizing panel design.
Differences in Residential vs. Industrial Panel Design
Residential panels typically use Miniature Circuit Breakers (MCBs) with lower amperage ratings. These panels focus on protecting home appliances and general lighting circuits. Common configurations often include:
- 1-Phase Supply: Suitable for most homes.
- 20-40 Amps: MCB ratings for light-duty applications.
In contrast, industrial panels often require MCBs with higher ratings to manage larger machinery and equipment loads. These panels generally feature:
- 3-Phase Supply: More efficient for heavy loads.
- 63-100 Amps: Higher MCB ratings for machinery and equipment protection.
Understanding these differences is crucial for ensuring correct sizing and safety. An industrial setup demands more robust components and higher fault protection levels to prevent overloads.
Ensuring Code Compliance and Proper Documentation
Compliance with electrical codes, such as the National Electrical Code (NEC) and International Electrotechnical Commission (IEC) standards, is essential. These codes dictate how distribution boards should be designed, installed, and maintained. Key compliance factors include:
- Load Calculation: Accurate estimation of total load requirements is vital to select the right MCBs.
- Documentation: Maintaining records of installation and modifications ensures compliance and safety.
Proper documentation helps with future inspections and audits. This proactive approach reduces risks of electrical failures, fires, and safety hazards, ensuring that both residential and commercial setups meet required safety standards.

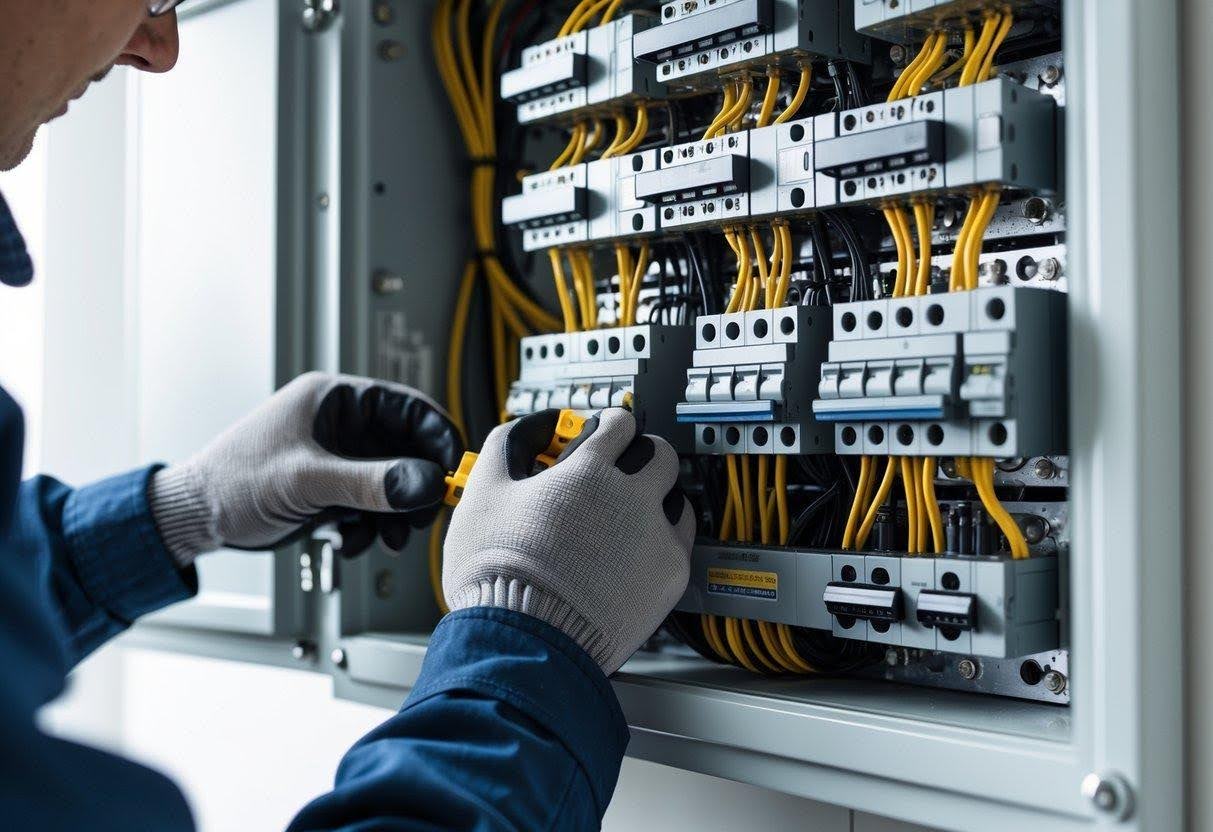

Importance of Professional Installation
Hiring a qualified electrician for installation is critical for both efficiency and safety. Professionals understand:
- Local Codes: They are familiar with local electrical codes and regulations, ensuring compliance.
- Load Management: Skilled electricians assess the power distribution needs and select appropriate MCBs.
Even minor mistakes during installation can create significant safety hazards. Professionally installed systems are less likely to encounter issues such as overloads or circuit failures, promoting a safer environment. For commercial setups, credibility of installation can impact insurance and liability, making professional expertise even more crucial.
